Marion Hyper-Sub HS-250 Sport

Δημοσίευση  lkarapa Την / Το Δευ Μαρ 30, 2009 8:03 am

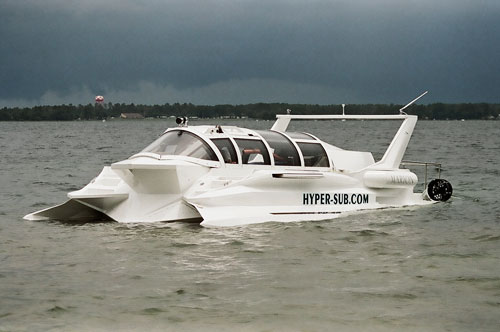

The Marion Hyper-Sub HS-250 Sport is designed with individual owners and charter operators in mind for recreational and tourism use. The HS-250 Sport delivers robust surface and submerged performance with 180-degrees of view through its all-acrylic canopy.

The HS-250 Sport is built to the following minimum specifications.* Each Hyper-Sub is completely customizable to the customer’s needs, and both surface and submerged performance can easily be significantly enhanced and additional capabilities may be added with optional components. Contact us for additional details.








HS-250 Specifications*
General Demensions
Seating Capacity (cabin): 4, plus pilot
Overall Length: 31’
Total Beam/Width (with side tanks): 13’6”
Transportation Beam/Width (without side tanks installed): 11’
Height (keel to top of cabin): 6’10”
Height with Arch/Spoiler: 8’6”
Draft: 24” (approx. in saltwater)
Dry Weight: 26,000 lbs.
Safety
ABS Certified*
One-Atmosphere, Climate-Controlled Pressure Hull Passenger Cabin (passengers are not subject to dive compression)
Historic Sea-Keeping Capabilities and Emergency Systems Click Here for additional Information)
Emergency Life Support: 48 hours (with maximum passenger load)


The Hyper-Sub prototype's pilot controls and instrumentation panel includes forward and downward scanning sonar, wheel and throttle sticks for surface control, and joystick for subsurface control. Surface Performance
Maximum Surface Speed : 40 knots†‡
Maximum Surface Range: 500 miles†‡
Surface Powerplant: Twin 440 horsepower inboard diesel, 880 hp total‡
Fuel Capacity: 525 gallons (diesel)‡
Navigational Aids: GPS, chart plotting, radar, forward and downward sensing sonar, autopilot‡
Dive Performance
Maximum Dive Depth: 250 feet, safety factor of 17‡
Submerged Propulsion: electric over hydraulic
Self-Recharging Dive Systems (air and batteries)
Compressed Air Storage: 4,000 std. cu. ft. @ 4500 psi‡
Submerged Speed / Endurance‡:
Endurance Speed (kts) Power (hp)
1hr. 3.7 27
2hr. 3 15
4hr. 2.4 7.5
8hr. 1.9 3.7
20hr. 1.4 1.5
The chart reflects the performance with a standard HS-250 battery load of 4 AGM-type battery banks storing 26kWh (270Ah @ 96VDC). However, this performance can be significantly enhanced through the use of alternate batteries or with the addition of extra banks.

Battery Recharge (with 4 AGM-type battery banks) ‡:
60 minutes from full discharge to 80% charge (approx.)
90 minutes from full discharge to 100% charge (approx.)
Air Recharge‡:
Standard recharge is 20 minutes plus 10 minutes per 33 feet depth.

Accompaniments
Hemispherical Acrylic Forward View Port
180-Degree Acrylic Canopy
Umbilical SCBA Diver Support and SCUBA Tank Recharge Capability
Rear Deck Seating for 6
Upper Sun Decks (2): 13’ X 3’
A/C Power Inverter
* The Hyper-Sub is still in the prototype stage; however, all production models will be built to ABS standards and certified. These specifications represent targets that are subject to change during production model development.
† Approximate, under optimal sea conditions with standard components and moderate payload.
‡ Upgradeable. See Options Page for more detail.


http://hyper-sub.com/product.hs2500.php
